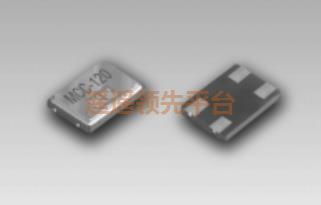

HE-MCC-120-32.000F-20-E,HEC石英晶体谐振器,HE-MCC-120晶振

频率：32MHz

尺寸：7.0 x 5.0mm

原厂型号 Original model ：	HE-MCC-120-32.000F-20-E
品牌 brand ：	HEC无源贴片晶振
型号名称 Model name：	HE-MCC-120
Type 系列：	MHz Crystal
频率 frequency ：	32MHz
Frequency Stability频率稳定度	±50PPM
frequency tolerance频率容差	±50PPM
Load capacitance 负载电容	20pf
Size / Dimension 尺寸	7.0 x 5.0mm

订购热线：13380314981

HE-MCC-120-32.000F-20-E,HEC石英晶体谐振器,HE-MCC-120晶振详细参数

原厂型号 Original model ：	HE-MCC-120-32.000F-20-E
品牌 brand ：	HEC晶振
型号名称 Model name：	HE-MCC-120
Type 系列：	MHz Crystal
频率 frequency ：	32MHz进口晶振
Frequency Stability频率稳定度	±50PPM
frequency tolerance频率容差	±50PPM
Load capacitance 负载电容	20pf
Size / Dimension 尺寸	7.0 x 5.0mm
Package Height 厚度	1.2 mm
ESR (Equivalent Series Resistance)ESR（等效串联电阻）	40
Operating Temperature 工作温度	-40+85°C
Termination 脚位	4-pad
Package Type 封装类型	4-SMD
Packaging 包装	Tape and Reel
Mounting Style 安装方式	Surface Mount
