XLL526125.000000I,IDT艾迪悌,IDT有源振荡器,LVDS差分晶振,2.5V晶振,IDT艾迪悌晶振
频率：125MHz

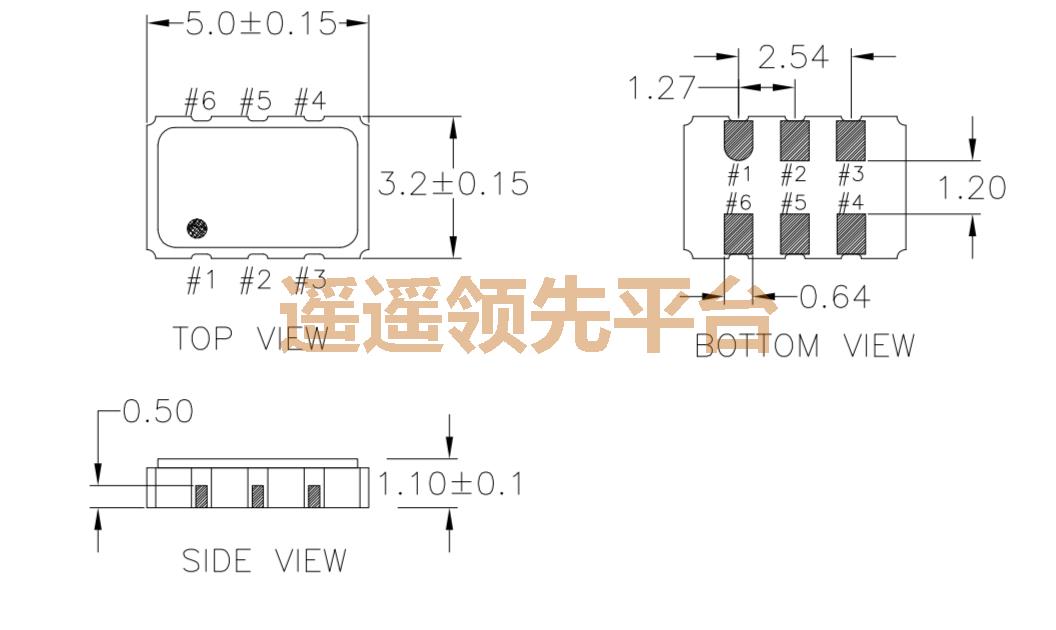

尺寸：5.15mm x 3.35mm
| Original model 原厂编码 | XLL526125.000000I |
| Manufacturer 品牌 | IDT艾迪悌 |
| Part Series 型号 | LC52 |
| Type 类型 | XO (Standard) |
| Frequency 频率 | 125MHz |
| Output Type 输出方式 | LVDS |
| Frequency Stability 频率稳定性 | ±25ppm |
| Operating Temperature 工作温度 | -40°C ~ 85°C |
| Current Consumption 电流消耗 | 34mA |
| Package Size 包装尺寸 | 5.15mm x 3.35mm |
| Supply Voltage 电压 | 2.5V |
订购热线：13380314981
XLL526125.000000I,IDT艾迪悌,IDT有源振荡器,LVDS差分晶振,2.5V晶振,IDT艾迪悌晶振 详细参数
| Original model 原厂编码 | XLL526125.000000I |
| Manufacturer 品牌 | IDT晶振 |
| Part Series 型号 | LC52 |
| Type 类型 | XO (Standard) |
| Frequency 频率 | 125MHz |
| Output Type 输出方式 | LVDS |
| Frequency Stability 频率稳定性 | ±25ppm |
| Operating Temperature 工作温度 | -40°C ~ 85°C |
| Package Size 包装尺寸 | 34mA |
| Supply Voltage 电压 | 5.15mm x 3.35mm |
| Current Consumption 电流消耗 | 2.5V |
| Package Height 厚度 | 1.40mm |
| Termination 脚位 | 6 Pad |
| Package Type 封装类型 | 6-SMD |
| Lead Free 无铅 | Yes |
| Mounting Style 安装方式 | Surface Mount |
| Packaging 包装 | Tape and Reel |
XLL526125.000000I,IDT艾迪悌,IDT有源振荡器,LVDS差分晶振,2.5V晶振,IDT艾迪悌晶振 相关产品
| XUN535100.000JS6I8 | IDT晶振 | XUN | XO (Standard) | 100MHz | HCSL | ±50ppm | -40°C ~ 85°C | 145mA |
| XUN535100.000JS6I8 | IDT晶振 | XUN | XO (Standard) | 100MHz | HCSL | ±50ppm | -40°C ~ 85°C | 145mA |
| XUN535100.000JS6I8 | IDT晶振 | XUN | XO (Standard) | 100MHz | HCSL | ±50ppm | -40°C ~ 85°C | 145mA |
| XUP535156.250JS6I8 | IDT晶振 | XUP | XO (Standard) | 156.25MHz | LVPECL | ±50ppm | -40°C ~ 85°C | 115mA |
| XUP535156.250JS6I8 | IDT晶振 | XUP | XO (Standard) | 156.25MHz | LVPECL | ±50ppm | -40°C ~ 85°C | 115mA |
| XUP535156.250JS6I8 | IDT晶振 | XUP | XO (Standard) | 156.25MHz | LVPECL | ±50ppm | -40°C ~ 85°C | 115mA |
| XUL535100.000JS6I8 | IDT晶振 | XUL | XO (Standard) | 100MHz | LVDS | ±50ppm | -40°C ~ 85°C | 97mA |
| XUL535100.000JS6I8 | IDT晶振 | XUL | XO (Standard) | 100MHz | LVDS | ±50ppm | -40°C ~ 85°C | 97mA |
| XUL535100.000JS6I8 | IDT晶振 | XUL | XO (Standard) | 100MHz | LVDS | ±50ppm | -40°C ~ 85°C | 97mA |
| XUL535125.000JS6I8 | IDT晶振 | XUL | XO (Standard) | 125MHz | LVDS | ±50ppm | -40°C ~ 85°C | 97mA |
| XUL535125.000JS6I8 | IDT晶振 | XUL | XO (Standard) | 125MHz | LVDS | ±50ppm | -40°C ~ 85°C | 97mA |
| XUL535125.000JS6I8 | IDT晶振 | XUL | XO (Standard) | 125MHz | LVDS | ±50ppm | -40°C ~ 85°C | 97mA |
| XLL526125.000000I | IDT晶振 | LC52 | XO (Standard) | 125MHz | LVDS | ±25ppm | -40°C ~ 85°C | 34mA |
| XLL526125.000000I | IDT晶振 | LC52 | XO (Standard) | 125MHz | LVDS | ±25ppm | -40°C ~ 85°C | 34mA |
| XLL526125.000000I | IDT晶振 | LC52 | XO (Standard) | 125MHz | LVDS | ±25ppm | -40°C ~ 85°C | 34mA |
| XUH736156.250JU4I | IDT晶振 | XUH | XO (Standard) | 156.25MHz | HCMOS | ±25ppm | -40°C ~ 85°C | 90mA |
| XUH536156.250JS4I | IDT晶振 | XUH | XO (Standard) | 156.25MHz | HCMOS | ±25ppm | -40°C ~ 85°C | 90mA |
| XUL536100.000JS6I | IDT晶振 | XUL | XO (Standard) | 100MHz | LVDS | ±25ppm | -40°C ~ 85°C | 97mA |
| XUL536125.000JS6I | IDT晶振 | XUL | XO (Standard) | 125MHz | LVDS | ±25ppm | -40°C ~ 85°C | 97mA |
| XUN536100.000JS6I | IDT晶振 | XUN | XO (Standard) | 100MHz | HCSL | ±25ppm | -40°C ~ 85°C | 145mA |
| XUN536133.333JS6I | IDT晶振 | XUN | XO (Standard) | 133.333MHz | HCSL | ±25ppm | -40°C ~ 85°C | 145mA |
| XUP536100.000JS6I | IDT晶振 | XUP | XO (Standard) | 100MHz | LVPECL | ±25ppm | -40°C ~ 85°C | 115mA |
| XUP536125.000JS6I | IDT晶振 | XUP | XO (Standard) | 125MHz | LVPECL | ±25ppm | -40°C ~ 85°C | 115mA |
| XUP536150.000JS6I | IDT晶振 | XUP | XO (Standard) | 150MHz | LVPECL | ±25ppm | -40°C ~ 85°C | 115mA |
| XUP536156.250JS6I | IDT晶振 | XUP | XO (Standard) | 156.25MHz | LVPECL | ±25ppm | -40°C ~ 85°C | 115mA |
| XUL736125.000JU6I | IDT晶振 | XUL | XO (Standard) | 125MHz | LVDS | ±25ppm | -40°C ~ 85°C | 97mA |
| XUP736150.000JU6I | IDT晶振 | XUP | XO (Standard) | 150MHz | LVPECL | ±25ppm | -40°C ~ 85°C | 115mA |
| XUP736156.250JU6I | IDT晶振 | XUP | XO (Standard) | 156.25MHz | LVPECL | ±25ppm | -40°C ~ 85°C | 115mA |
| XUP736100.000JU6I | IDT晶振 | XUP | XO (Standard) | 100MHz | LVPECL | ±25ppm | -40°C ~ 85°C | 115mA |
| XUL736150.000JU6I | IDT晶振 | XUL | XO (Standard) | 150MHz | LVDS | ±25ppm | -40°C ~ 85°C | 97mA |
| XUP736125.000JU6I | IDT晶振 | XUP | XO (Standard) | 125MHz | LVPECL | ±25ppm | -40°C ~ 85°C | 115mA |
| XUL736100.000JU6I | IDT晶振 | XUL | XO (Standard) | 100MHz | LVDS | ±25ppm | -40°C ~ 85°C | 97mA |
| XUP536212.500JS6I | IDT晶振 | XUP | XO (Standard) | 212.5MHz | LVPECL | ±25ppm | -40°C ~ 85°C | 115mA |
| XUL736212.500JU6I | IDT晶振 | XUL | XO (Standard) | 212.5MHz | LVDS | ±25ppm | -40°C ~ 85°C | 97mA |
| XUL536212.500JS6I | IDT晶振 | XUL | XO (Standard) | 212.5MHz | LVDS | ±25ppm | -40°C ~ 85°C | 97mA |
| XLP736100.000000I | IDT晶振 | PC73 | XO (Standard) | 100MHz | LVPECL | ±25ppm | -40°C ~ 85°C | 120mA |
| XLL736100.000000I | IDT晶振 | LC73 | XO (Standard) | 100MHz | LVDS | ±25ppm | -40°C ~ 85°C | 100mA |
| XLL536125.000000I | IDT晶振 | LC53 | XO (Standard) | 125MHz | LVDS | ±25ppm | -40°C ~ 85°C | 100mA |
| XLL736060.000000I | IDT晶振 | LC73 | XO (Standard) | 60MHz | LVDS | ±25ppm | -40°C ~ 85°C | 100mA |
| XLL726200.000000I | IDT晶振 | LC72 | XO (Standard) | 200MHz | LVDS | ±25ppm | -40°C ~ 85°C | 34mA |
| XLL726250.000000I | IDT晶振 | LC72 | XO (Standard) | 250MHz | LVDS | ±25ppm | -40°C ~ 85°C | 44mA |
| XLH53V010.000000I | IDT晶振 | XPRESSO™ FVXO-HC53 | VCXO | 10MHz | HCMOS | - | -40°C ~ 85°C | 32mA |
| XLL73V148.500000I | IDT晶振 | XPRESSO™ FVXO-LC73 | VCXO | 148.5MHz | LVDS | - | -40°C ~ 85°C | 100mA |
| XLP73V153.600000I | IDT晶振 | XPRESSO™ FVXO-PC73 | VCXO | 153.6MHz | LVPECL | - | -40°C ~ 85°C | 120mA |
| XLL52V125.000000X | IDT晶振 | XPRESSO™ FVXO-LC52 | VCXO | 125MHz | LVDS | - | -20°C ~ 70°C | 34mA |
| XLH335040.000000I | IDT晶振 | HC33 | XO (Standard) | 40MHz | HCMOS | ±50ppm | -40°C ~ 85°C | 35mA |
| XLH335066.666000I | IDT晶振 | HC33 | XO (Standard) | 66.666MHz | HCMOS | ±50ppm | -40°C ~ 85°C | 47mA |
| FVXO-HC73BR-22.5792 | IDT晶振 | XPRESSO™ FVXO-HC73 | VCXO | 22.5792MHz | HCMOS | - | -40°C ~ 85°C | 35mA |
| FVXO-HC73BR-22.5792 | IDT晶振 | XPRESSO™ FVXO-HC73 | VCXO | 22.5792MHz | HCMOS | - | -40°C ~ 85°C | 35mA |
| FVXO-HC73BR-22.5792 | IDT晶振 | XPRESSO™ FVXO-HC73 | VCXO | 22.5792MHz | HCMOS | - | -40°C ~ 85°C | 35mA |
| FVXO-HC53BR-98.304 | IDT晶振 | XPRESSO™ FVXO-HC53 | VCXO | 98.304MHz | HCMOS | - | -40°C ~ 85°C | 47mA |
| FVXO-HC53BR-98.304 | IDT晶振 | XPRESSO™ FVXO-HC53 | VCXO | 98.304MHz | HCMOS | - | -40°C ~ 85°C | 47mA |
| FVXO-HC53BR-98.304 | IDT晶振 | XPRESSO™ FVXO-HC53 | VCXO | 98.304MHz | HCMOS | - | -40°C ~ 85°C | 47mA |
| XLL536150.000000I | IDT晶振 | LC53 | XO (Standard) | 150MHz | LVDS | ±25ppm | -40°C ~ 85°C | 100mA |
| XLL726125.000000I | IDT晶振 | LC72 | XO (Standard) | 125MHz | LVDS | ±25ppm | -40°C ~ 85°C | 34mA |
| XLH736012.000000I | IDT晶振 | HC73 | XO (Standard) | 12MHz | HCMOS | ±25ppm | -40°C ~ 85°C | 32mA |
| XLH736012.000000I | IDT晶振 | HC73 | XO (Standard) | 12MHz | HCMOS | ±25ppm | -40°C ~ 85°C | 32mA |
| XLH736012.000000I | IDT晶振 | HC73 | XO (Standard) | 12MHz | HCMOS | ±25ppm | -40°C ~ 85°C | 32mA |
| XLH536012.000000I | IDT晶振 | HC53 | XO (Standard) | 12MHz | HCMOS | ±25ppm | -40°C ~ 85°C | 32mA |
| XLH536012.000000I | IDT晶振 | HC53 | XO (Standard) | 12MHz | HCMOS | ±25ppm | -40°C ~ 85°C | 32mA |
