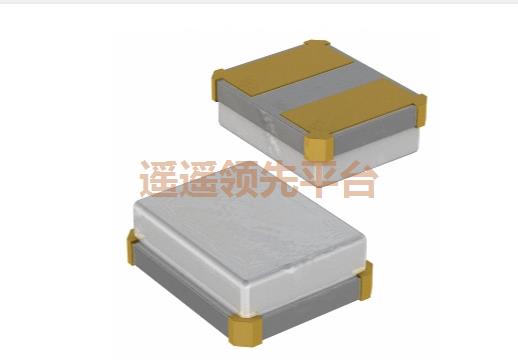

XRCHA24M000F0A01R0,Murata村田谐振器,XRCHA晶振

当前位置：首页 » 日产进口晶振 » MuRata晶振 » XRCHA24M000F0A01R0,Murata村田谐振器,XRCHA晶振

prevnext

XRCHA24M000F0A01R0,Murata村田谐振器,XRCHA晶振

频率：24 MHz

尺寸：2.50mm x 2.00mm

原厂型号 Original model ：	XRCHA24M000F0A01R0
品牌 brand ：	Murata村田晶振
型号名称 Model name：	XRCHA
Type 系列：	MHz Crystal
频率 frequency ：	24 MHz
Frequency Stability频率稳定度	±100ppm
frequency tolerance频率容差	±100ppm
Load capacitance 负载电容	8pF
Size / Dimension 尺寸	2.50mm x 2.00mm

订购热线：13380314981

XRCHA24M000F0A01R0,Murata村田谐振器,XRCHA晶振详细参数

原厂型号 Original model ：	XRCHA24M000F0A01R0
品牌 brand ：	Murata村田晶振
型号名称 Model name：	XRCHA
Type 系列：	MHz Crystal
频率 frequency ：	24 MHz
Frequency Stability频率稳定度	±100ppm
frequency tolerance频率容差	±100ppm晶振
Load capacitance 负载电容	8pF
Size / Dimension 尺寸	2.50mm x 2.00mm
Package Height 厚度	0.80mm
ESR (Equivalent Series Resistance)ESR（等效串联电阻）	80 Ohms
Operating Temperature 工作温度	-40°C~125°C
Termination 脚位	2 pad
Package Type 封装类型	2-SMD
Packaging 包装	Tape and Reel
Mounting Style 安装方式	Surface Mount

XRCHA24M000F0A01R0,Murata村田谐振器,XRCHA晶振相关产品

XRCPB48M000F0Z00R0	Murata村田晶振	*	-	-	-	-	-
XRCGB26M000F1H00R0	Murata村田晶振	XRCGB	MHz Crystal	26 MHz	±10ppm	±10ppm	6pF
XRCGB25M000F1H00R0	Murata村田晶振	XRCGB晶振	MHz Crystal	25 MHz	±10ppm	±10ppm	6pF
XRCGB26M000F1H33R0	Murata村田晶振	XRCGB	MHz Crystal	26 MHz	±20ppm	±10ppm	6pF
WMRAG32K76CT2C00R0	Murata村田晶振	WMRAG	kHz Crystal (Tuning Fork)	32.768 kHz	-	±20ppm	9pF
WMRAG32K76CV2C00R0	Murata村田晶振	WMRAG	kHz Crystal (Tuning Fork)	32.768 kHz	-	±20ppm	12.5pF
WMRAG32K76CS1C00R0	Murata村田晶振	-	MEMS	32.768 kHz	-	±20ppm	8pF
XRCHA24M000F0A01R0	Murata村田晶振	XRCHA	MHz Crystal	24 MHz	±100ppm	±100ppm	8pF
XRCMD32M000FBP50R0	Murata村田晶振	XRCMD	-	-	-	-	-
XRCMD32M000FXP50R0	Murata村田晶振	XRCMD	MHz Crystal	32 MHz	-	±30ppm	6pF
XRCMD37M400F1Q01R0	Murata村田晶振	XRCMD	MHz Crystal	37.4 MHz	±10ppm	±10ppm	8pF
XRCFD26M000FYQ01R0	Murata村田晶振	XRCFD	MHz Crystal	26 MHz	-	±20ppm	8pF
XRCMD32M000FZQ52R0	Murata村田晶振	XRCMD	MHz Crystal	32 MHz	-	±30ppm	6pF
XRCMD32M000FXP54R0	Murata村田晶振	XRCMD	MHz Crystal	32 MHz	±20ppm	±35ppm	6pF
XRCMD48M000FXQ58R0	Murata村田晶振	XRCMD	MHz Crystal	48 MHz	-	±20ppm	7pF
XRCTD37M400FXQ50R0	Murata村田晶振	XRCTD	MHz Crystal	37.4 MHz	±20ppm	±20ppm	6pF
XRCGB24M000F1H02R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±10ppm	±10ppm	10pF
XRCFD27M120F2N51R0	Murata村田晶振	-	MHz Crystal	27.12 MHz	±30ppm	±20ppm	8pF
XRCGB24M000F1H24R0	Murata村田晶振	-	MHz Crystal	24 MHz	±35ppm	±10ppm	6pF
XRCGB26M000F1H01R0	Murata村田晶振	-	MHz Crystal	26 MHz	±10ppm	±10ppm	8pF
XRCGB26M000F1H08R0	Murata村田晶振	-	MHz Crystal	26 MHz	±10ppm	±10ppm	9pF
XRCGB26M000F1H23R0	Murata村田晶振	-	MHz Crystal	26 MHz	±16ppm	±10ppm	6.8pF
XRCGB32M000F1H50R0	Murata村田晶振	-	MHz Crystal	32 MHz	±10ppm	±10ppm	9pF
XRCHA16M000F0A12R0	Murata村田晶振	-	MHz Crystal	16 MHz	±100ppm	±100ppm	8pF
XRCMD32M000F1P00R0	Murata村田晶振	-	MHz Crystal	32 MHz	±20ppm	±10ppm	6pF
XRCMD32M000FXP52R0	Murata村田晶振	-	MHz Crystal	32 MHz	±30ppm	±30ppm	6pF
XRCMD32M000FXQ52R0	Murata村田晶振	-	MHz Crystal	32 MHz	±25ppm	±25ppm	6pF
XRCMD38M400FXQ56R0	Murata村田晶振	-	MHz Crystal	38.4 MHz	±20ppm	±20ppm	10pF
XRCMD40M000FXQ57R0	Murata村田晶振	-	MHz Crystal	40 MHz	±20ppm	±20ppm	10pF
XRCMD40M000FXQ58R0	Murata村田晶振	-	MHz Crystal	40 MHz	±20ppm	±20ppm	12pF
XRCMD40M000FXQ61R0	Murata村田晶振	-	MHz Crystal	40 MHz	±20ppm	±20ppm	5.8pF
XRCMD48M000FXQ60R0	Murata村田晶振	-	MHz Crystal	48 MHz	±20ppm	±20ppm	5.8pF
WMRAG32K76CS3C00R0	Murata村田晶振	-	MEMS	32.768 kHz	-	±20ppm	8pF
XRCHA24M000F0A13R0	Murata村田晶振	*	-	-	-	-	-
XRCED37M400FXQ52R0	Murata村田晶振	*	-	-	-	-	-
XRCFD26M000FXQ53R0	Murata村田晶振	*	-	-	-	-	-
XRCHA20M000F0Z01R0	Murata村田晶振	*	-	-	-	-	-
XRCGB32M000F1H03R0	Murata村田晶振	*	-	-	-	-	-
XRCHA20M000F0L01R0	Murata村田晶振	*	-	-	-	-	-
XRCFD26M000FXQ50R0	Murata村田晶振	*	-	-	-	-	-
XRCHA20M000F0A13R0	Murata村田晶振	*	-	-	-	-	-
XRCGB25M000F1H03R0	Murata村田晶振	*	-	-	-	-	-
XRCHA24M000F0A11R0	Murata村田晶振	*	-	-	-	-	-
XRCHA20M000F0A11R0	Murata村田晶振	*	-	-	-	-	-
XRCGB26M000F1H03R0	Murata村田晶振	*	-	-	-	-	-
XRCHA20M000F0A12R0	Murata村田晶振	*	-	-	-	-	-
XRCHA16M000F0A13R0	Murata村田晶振	*	-	-	-	-	-
XRCHA16M000F0L01R0	Murata村田晶振	*	-	-	-	-	-
XRCHA16M000F0Z01R0	Murata村田晶振	*	-	-	-	-	-
XRCHA16M000F0A11R0	Murata村田晶振	*	-	-	-	-	-
XRCHA24M000F0A12R0	Murata村田晶振	*	-	-	-	-	-
XRCGB26M000F1H2CR0	Murata村田晶振	XRCGB	MHz Crystal	26 MHz	±10ppm	±10ppm	7pF
XRCGB32M000FXH2CR0	Murata村田晶振	XRCGB	MHz Crystal	32 MHz	±40ppm	±40ppm	8pF
XRCFD25M000F2N51R0	Murata村田晶振	XRCFD	MHz Crystal	25 MHz	±50ppm	±20ppm	5pF
XRCFD26M000FXQ66R0	Murata村田晶振	XRCFD	MHz Crystal	26 MHz	-	-	5pF
XRCMD32M000F1N51R0	Murata村田晶振	*	-	-	-	-	-
XRCGB32M000F1S2JR0	Murata村田晶振	XRCGB	MHz Crystal	32 MHz	±20ppm	±10ppm	6pF
XRCGB38M400F1S2AR0	Murata村田晶振	XRCGB	MHz Crystal	38.4 MHz	±20ppm	±10ppm	10pF
XRCGB26M000F1S2ER0	Murata村田晶振	XRCGB	MHz Crystal	26 MHz	±10ppm	±10ppm	7pF
XRCGB38M400F1S3JR0	Murata村田晶振	XRCGB	MHz Crystal	38.4 MHz	-	±10ppm	-
