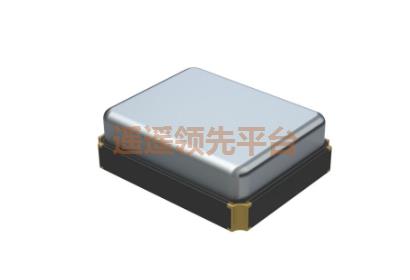

XRCGB30M000FAN00R0,Murata村田晶振,XRCGB无源晶振

频率：30 MHz

尺寸：2.00mm x 1.60mm

原厂型号 Original model ：	XRCGB30M000FAN00R0
品牌 brand ：	日本村田无源晶振
型号名称 Model name：	XRCGB
Type 系列：	MHz Crystal
频率 frequency ：	30 MHz
Frequency Stability频率稳定度	±25ppm
frequency tolerance频率容差	±25ppm
Load capacitance 负载电容	6pF
Size / Dimension 尺寸	2.00mm x 1.60mm

订购热线：13380314981

XRCGB30M000FAN00R0,Murata村田晶振,XRCGB无源晶振详细参数

原厂型号 Original model ：	XRCGB30M000FAN00R0
品牌 brand ：	Murata村田无源晶振
型号名称 Model name：	XRCGB晶振
Type 系列：	MHz Crystal
频率 frequency ：	30 MHz
Frequency Stability频率稳定度	±25ppm
frequency tolerance频率容差	±25ppm
Load capacitance 负载电容	6pF
Size / Dimension 尺寸	2.00mm x 1.60mm
Package Height 厚度	0.70mm
ESR (Equivalent Series Resistance)ESR（等效串联电阻）	100 Ohms
Operating Temperature 工作温度	-10°C~70°C
Termination 脚位	4 pad
Package Type 封装类型	4-SMD
Packaging 包装	Tape and Reel
Mounting Style 安装方式	Surface Mount

XRCGB30M000FAN00R0,Murata村田晶振,XRCGB无源晶振相关产品

XRCGB32M000F1SBCR0	Murata村田无源晶振	XRCGB	MHz Crystal	32 MHz	±20ppm	±10ppm	10pF
XRCGB32M000F1S2AR0	Murata村田无源晶振	XRCGB	MHz Crystal	32 MHz	±20ppm	±10ppm	8pF
XRCGB32M000F1SBAR0	Murata村田无源晶振	XRCGB	MHz Crystal	32 MHz	±20ppm	±10ppm	6pF
XRCGB32M000F1SBJR0	Murata村田无源晶振	XRCGB	MHz Crystal	32 MHz	±20ppm	±10ppm	9pF
XRCGB32M000F1SBDR0	Murata村田无源晶振	XRCGB	MHz Crystal	32 MHz	±20ppm	±10ppm	12pF
XRCGB32M000F1SBBR0	Murata村田无源晶振	XRCGB	MHz Crystal	32 MHz	±20ppm	±10ppm	8pF
XRCGB32M000F1SBLR0	Murata村田无源晶振	XRCGB	MHz Crystal	32 MHz	±20ppm	±10ppm	7pF
XRCGB38M400F1S2GR0	Murata村田无源晶振	XRCGB	MHz Crystal	38.4 MHz	±20ppm	±10ppm	8pF
XRCGB38M400F1S2JR0	Murata村田无源晶振	XRCGB	MHz Crystal	38.4 MHz	±20ppm	±10ppm	10pF
XRCGB32M000F1S1DR0	Murata村田无源晶振	XRCGB	MHz Crystal	32 MHz	±10ppm	±10ppm	12pF
XRCGB32M000F1S1CR0	Murata村田无源晶振	XRCGB	MHz Crystal	32 MHz	±10ppm	±10ppm	10pF
XRCGB32M000F1S1JR0	Murata村田无源晶振	XRCGB	MHz Crystal	32 MHz	±10ppm	±10ppm	9pF
XRCGB32M000F1S1BR0	Murata村田无源晶振	XRCGB	MHz Crystal	32 MHz	±10ppm	±10ppm	8pF
XRCGB32M000F1S1LR0	Murata村田无源晶振	XRCGB	MHz Crystal	32 MHz	±10ppm	±10ppm	7pF
XRCGB32M000F1S1AR0	Murata村田无源晶振	XRCGB	MHz Crystal	32 MHz	±10ppm	±10ppm	6pF
XRCGB26M000F3M00R0	Murata村田无源晶振	XRCGB	MHz Crystal	26 MHz	±40ppm	±30ppm	6pF
XRCGB26M000F3N00R0	Murata村田无源晶振	XRCGB	MHz Crystal	26 MHz	±30ppm	±30ppm	6pF
XRCGB27M000F3N00R0	Murata村田无源晶振	XRCGB	MHz Crystal	27 MHz	±30ppm	±30ppm	6pF
XRCGB30M000F3N00R0	Murata村田无源晶振	XRCGB	MHz Crystal	30 MHz	±30ppm	±30ppm	6pF
XRCGB24M576F3M00R0	Murata村田无源晶振	XRCGB	MHz Crystal	24.576 MHz	±40ppm	±30ppm	6pF
XRCGB27M000F3M01R0	Murata村田无源晶振	*	-	-	-	-	-
XRCGB30M000F3M02R0	Murata村田无源晶振	*	-	-	-	-	-
XRCGB24M576F3N00R0	Murata村田无源晶振	*	-	-	-	-	-
XRCGB30M000F3M01R0	Murata村田无源晶振	*	-	-	-	-	-
XRCGB26M000F3M02R0	Murata村田无源晶振	*	-	-	-	-	-
XRCGB27M000F3M02R0	Murata村田无源晶振	*	-	-	-	-	-
XRCGB24M000F3M02R0	Murata村田无源晶振	*	-	-	-	-	-
XRCGB25M000F3M02R0	Murata村田无源晶振	*	-	-	-	-	-
XRCGB27M120F3N00R0	Murata村田无源晶振	*	-	-	-	-	-
XRCGB25M000F3M01R0	Murata村田无源晶振	*	-	-	-	-	-
XRCGB31M250F3M01R0	Murata村田无源晶振	*	-	-	-	-	-
XRCGB31M250F3M02R0	Murata村田无源晶振	*	-	-	-	-	-
XRCGB26M000F3M01R0	Murata村田无源晶振	*	-	-	-	-	-
XRCGB27M120F3M02R0	Murata村田无源晶振	*	-	-	-	-	-
XRCGB25M000F3M04R0	Murata村田无源晶振	*	-	-	-	-	-
XRCGB32M000F3M02R0	Murata村田无源晶振	*	-	-	-	-	-
XRCGB24M000F3M01R0	Murata村田无源晶振	*	-	-	-	-	-
XRCGB31M250F3N00R0	Murata村田无源晶振	*	-	-	-	-	-
XRCGB38M400F1S1BR0	Murata村田无源晶振	XRCGB	MHz Crystal	38.4 MHz	±10ppm	±10ppm	8pF
XRCGB38M400F1S1DR0	Murata村田无源晶振	XRCGB	MHz Crystal	38.4 MHz	±10ppm	±10ppm	12pF
XRCGB38M400F1S1AR0	Murata村田无源晶振	XRCGB	MHz Crystal	38.4 MHz	±10ppm	±10ppm	6pF
XRCGB38M400F1S1JR0	Murata村田无源晶振	XRCGB	MHz Crystal	38.4 MHz	±10ppm	±10ppm	9pF
XRCGB24M000F1SBLR0	Murata村田无源晶振	XRCGB	MHz Crystal	24 MHz	±20ppm	±10ppm	7pF
XRCGB24M000F1SBDR0	Murata村田无源晶振	XRCGB	MHz Crystal	24 MHz	±20ppm	±10ppm	12pF
XRCGB24M000F1SBJR0	Murata村田无源晶振	XRCGB	MHz Crystal	24 MHz	±20ppm	±10ppm	9pF
XRCGB24M000F1SBBR0	Murata村田无源晶振	XRCGB	MHz Crystal	24 MHz	±20ppm	±10ppm	8pF
XRCGB24M000F1SBCR0	Murata村田无源晶振	XRCGB	MHz Crystal	24 MHz	±20ppm	±10ppm	10pF
XRCGB31M250F2P02R0	Murata村田无源晶振	*	-	-	-	-	-
XRCGB31M250F2P01R0	Murata村田无源晶振	*	-	-	-	-	-
XRCGB37M400F1S2FR0	Murata村田无源晶振	XRCGB	MHz Crystal	37.4 MHz	±20ppm	±10ppm	6pF
XRCGB24M000FFS1DR0	Murata村田无源晶振	XRCGB	MHz Crystal	24 MHz	±12ppm	±8ppm	12pF
XRCGB24M000FFS1JR0	Murata村田无源晶振	XRCGB	MHz Crystal	24 MHz	±12ppm	±8ppm	9pF
XRCGB24M000FFS1LR0	Murata村田无源晶振	XRCGB	MHz Crystal	24 MHz	±12ppm	±8ppm	7pF
XRCGB24M000FFS1AR0	Murata村田无源晶振	XRCGB	MHz Crystal	24 MHz	±12ppm	±8ppm	6pF
XRCGB24M000FFS1CR0	Murata村田无源晶振	XRCGB	MHz Crystal	24 MHz	±12ppm	±8ppm	10pF
XRCGB24M000FFS1BR0	Murata村田无源晶振	XRCGB	MHz Crystal	24 MHz	±12ppm	±8ppm	8pF
XRCGB24M576F0G00R0	Murata村田无源晶振	XRCGB	MHz Crystal	24.576 MHz	±50ppm	±100ppm	6pF
XRCGB37M400F1S1BR0	Murata村田无源晶振	XRCGB	MHz Crystal	37.4 MHz	±10ppm	±10ppm	8pF
XRCGB37M400F1S1AR0	Murata村田无源晶振	XRCGB	MHz Crystal	37.4 MHz	±10ppm	±10ppm	6pF
XRCGB37M400F1S1JR0	Murata村田无源晶振	XRCGB	MHz Crystal	37.4 MHz	±10ppm	±10ppm	9pF
