OXKTGLJANF-19.200000,OX晶振,1.8V晶振,3225贴片晶振,TAITIEN有源晶振,泰艺石英晶体振荡器
频率：19.2MHz

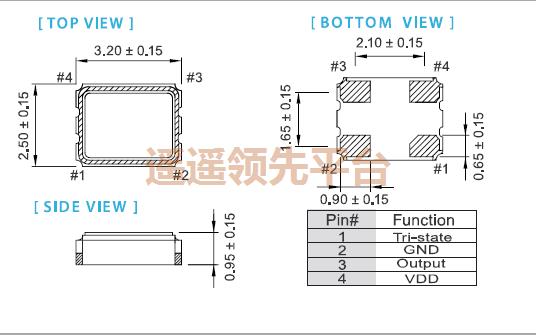

尺寸：3.20mm x 2.50mm
| Part Series 型号 | OX |
| Original model 原厂编码 | OXKTGLJANF-19.200000 |
| Manufacturer 品牌 | Taitien |
| Type 类型 | XO (Standard) |
| Frequency 频率 | 19.2MHz |
| Supply Voltage 电压 | 1.8V |
| Output Type 输出方式 | CMOS |
| Frequency Stability 频率稳定性 | ±50ppm |
| Package Size 包装尺寸 |
3225贴片晶振 |
订购热线：13380314981
OXKTGLJANF-19.200000,OX晶振,1.8V晶振,3225贴片晶振,TAITIEN有源晶振,泰艺石英晶体振荡器 详细参数
| Part Series 型号 | OX |
| Original model 原厂编码 | OXKTGLJANF-19.200000 |
| Manufacturer 品牌 | Taitien |
| Type 类型 | XO (Standard) |
| Frequency 频率 | 19.2MHz |
| Supply Voltage 电压 | 1.8V |
| Output Type 输出方式 | CMOS |
| Frequency Stability 频率稳定性 | ±50ppm |
| Package Size 包装尺寸 | 3.20mm x 2.50mm |
| Termination 脚位 | 4 Pad |
| Package Height 厚度 | 1.10mm |
| Package Type 封装类型 | 4-SMD晶振 |
| Current Consumption 电流消耗 | 5mA |
| Operating Temperature 工作温度 | -40°C ~ 85°C |
| Lead Free 无铅 | Yes |
| Mounting Style 安装方式 | Surface Mount |
| Packaging 包装 | Tape and Reel |
OXKTGLJANF-19.200000,OX晶振,1.8V晶振,3225贴片晶振,TAITIEN有源晶振,泰艺石英晶体振荡器 相关产品
| OXKTGLJANF-19.200000 | Taitien | OX | XO (Standard) | 19.2MHz | 1.8V |
| OXKTGLJANF-19.200000 | Taitien | OX | XO (Standard) | 19.2MHz | 1.8V |
| OXKTGLJANF-19.200000 | Taitien | OX | XO (Standard) | 19.2MHz | 1.8V |
| OCETDLJANF-25.000000 | Taitien | OC | XO (Standard) | 25MHz | 有源3.3V振荡器 |
| OCETDLJANF-25.000000 | Taitien | OC | XO (Standard) | 25MHz | 3.3V |
| OCETDLJANF-25.000000 | Taitien | OC | XO (Standard) | 25MHz | 3.3V |
| OCETGLJTNF-125.000000 | Taitien | OC | XO (Standard) | 125MHz | 3.3V |
| OCETGLJTNF-125.000000 | Taitien | OC | XO (Standard) | 125MHz | 3.3V |
| OCETGLJTNF-125.000000 | Taitien | OC | XO (Standard) | 125MHz | 3.3V |
| OCETGLJTNF-106.250000 | Taitien | OC | XO (Standard) | 106.25MHz | 3.3V |
| OCETGLJTNF-106.250000 | Taitien | OC | XO (Standard) | 106.25MHz | 3.3V |
| OCETGLJTNF-106.250000 | Taitien | OC | XO (Standard) | 106.25MHz | 3.3V |
| OCETGLJTNF-100.000000 | Taitien | OC | XO (Standard) | 100MHz | 3.3V |
| OCETGLJTNF-100.000000 | Taitien | OC | XO (Standard) | 100MHz | 3.3V |
| OCETGLJTNF-100.000000 | Taitien | OC | XO (Standard) | 100MHz | 3.3V |
| OYETGHJANF-66.667000 | Taitien | OY | XO (Standard) | 66.667MHz | 3.3V |
| OYETGHJANF-66.667000 | Taitien | OY | XO (Standard) | 66.667MHz | 3.3V |
| OYETGHJANF-66.667000 | Taitien | OY | XO (Standard) | 66.667MHz | 3.3V |
| OCETGLJTNF-133.000000 | Taitien | OC | XO (Standard) | 133MHz | 3.3V |
| OCETGLJTNF-133.000000 | Taitien | OC | XO (Standard) | 133MHz | 3.3V |
| OCETGLJTNF-133.000000 | Taitien | OC | XO (Standard) | 133MHz | 3.3V |
| OYEUDCJANF-49.152000 | Taitien | OY | XO (Standard) | 49.152MHz | 3.3V |
| OYEUDCJANF-49.152000 | Taitien | OY | XO (Standard) | 49.152MHz | 3.3V |
| OYEUDCJANF-49.152000 | Taitien | OY | XO (Standard) | 49.152MHz | 3.3V |
| OYEUDCJANF-45.158400 | Taitien | OY | XO (Standard) | 45.1584MHz | 3.3V |
| OYEUDCJANF-45.158400 | Taitien | OY | XO (Standard) | 45.1584MHz | 3.3V |
| OYEUDCJANF-45.158400 | Taitien | OY | XO (Standard) | 45.1584MHz | 3.3V |
| OXETGCJTNF-125.000000 | Taitien | OX | XO (Standard) | 125MHz | 3.3V |
| OXETGCJTNF-125.000000 | Taitien | OX | XO (Standard) | 125MHz | 3.3V |
| OXETGCJTNF-125.000000 | Taitien | OX | XO (Standard) | 125MHz | 3.3V |
| OXETDLJTNF-100.000000 | Taitien | OX | XO (Standard) | 100MHz | 2.8V |
| OXETDLJTNF-100.000000 | Taitien | OX | XO (Standard) | 100MHz | 2.8V |
| OXETDLJTNF-100.000000 | Taitien | OX | XO (Standard) | 100MHz | 2.8V |
| OXJTGLKTNF-125.000000 | Taitien | OX | XO (Standard) | 125MHz | 2.5V |
| OXJTGLKTNF-125.000000 | Taitien | OX | XO (Standard) | 125MHz | 2.5V |
| OXJTGLKTNF-125.000000 | Taitien | OX | XO (Standard) | 125MHz | 2.5V |
| OTETGCLTNF-156.250000 | Taitien | OT | XO (Standard) | 156.25MHz | 3.3V |
| OTETGCLTNF-156.250000 | Taitien | OT | XO (Standard) | 156.25MHz | 3.3V |
| OTETGCLTNF-156.250000 | Taitien | OT | XO (Standard) | 156.25MHz | 3.3V |
| TXETBLSANF-26.000000 | Taitien | TX | TCXO | 26MHz | 2.8 V ~ 3.3 V |
| TXETBLSANF-26.000000 | Taitien | TX | TCXO | 26MHz | 2.8 V ~ 3.3 V |
| TXETBLSANF-26.000000 | Taitien | TX | TCXO | 26MHz | 2.8 V ~ 3.3 V |
| TXETALSANF-26.000000 | Taitien | TX | TCXO | 26MHz | 2.8 V ~ 3.3 V |
| TXETALSANF-26.000000 | Taitien | TX | TCXO | 26MHz | 2.8 V ~ 3.3 V |
| TXETALSANF-26.000000 | Taitien | TX | TCXO | 26MHz | 2.8 V ~ 3.3 V |
| TXEABDSANF-32.000000 | Taitien | TX | VCTCXO | 32MHz | 2.8 V ~ 3.3 V |
| TXEABDSANF-32.000000 | Taitien | TX | VCTCXO | 32MHz | 2.8 V ~ 3.3 V |
| TXEABDSANF-32.000000 | Taitien | TX | VCTCXO | 32MHz | 2.8 V ~ 3.3 V |
| VTEUPLJANF-40.960000 | Taitien | VT | VCXO | 40.96MHz | 3.3V |
| VTEUPLJANF-40.960000 | Taitien | VT | VCXO | 40.96MHz | 3.3V |
| VTEUPLJANF-40.960000 | Taitien | VT | VCXO | 40.96MHz | 3.3V |
| VTEUMCJANF-19.440000 | Taitien | VT | VCXO | 19.44MHz | 3.3V |
| VTEUMCJANF-19.440000 | Taitien | VT | VCXO | 19.44MHz | 3.3V |
| VTEUMCJANF-19.440000 | Taitien | VT | VCXO | 19.44MHz | 3.3V |
| VTEUMCJANF-25.000000 | Taitien | VT | VCXO | 25MHz | 3.3V |
| VTEUMCJANF-25.000000 | Taitien | VT | VCXO | 25MHz | 3.3V |
| VTEUMCJANF-25.000000 | Taitien | VT | VCXO | 25MHz | 3.3V |
| TXEABLSANF-24.000000 | Taitien | TX | VCTCXO | 24MHz | 2.8 V ~ 3.3 V |
| TXEABLSANF-24.000000 | Taitien | TX | VCTCXO | 24MHz | 2.8 V ~ 3.3 V |
| TXEABLSANF-24.000000 | Taitien | TX | VCTCXO | 24MHz | 2.8 V ~ 3.3 V |
